Name: Irritech Centre Pivot Irrigation Systems
Brand: Australian Pivot Solutions

Irritech centre pivot and lateral move machines deliver precision irrigation for broadacre farming. Irritech systems use genuine UMC drive components, Komet and Senninger sprinklers and end guns, Bermad valve control, and Honeywell micro switches. All tower boxes feature indicator lights for instant visual alerts when safety circuits break. Customised stainless steel control panels with LED lighting are available for safe and convenient night operation. Core components are sourced from leading global brands including UMC, Bermad, Komet and Senninger.

Enquire About This Product

Tell us what you need and our team will be in touch within one business day.

Irritech towable centre pivot irrigation system

About This System

The Irritech Centre Pivot Irrigation Systems delivers precision centre pivot and lateral move irrigation engineered for broadacre farming, featuring genuine UMC drive components, Komet and Senninger sprinklers, and hot-dip galvanised steel construction.

Genuine UMC drive motors, gearboxes, couplers and collector rings for reliable performance
Komet and Senninger sprinklers and end guns with Bermad valve control for precision water application
Hot-dip galvanised steel construction for long-term corrosion resistance
Customised stainless steel control panels with LED lighting for safe night operation
Honeywell micro switches with stainless steel sensor bearing and switch pivot arm in all tower boxes
Fertigation-ready — apply fertilizer and crop protection products through centre pivot or linear systems

Core Specs

Key Specifications

Span Lengths — 43.37m to 60.63m

Available in 43.37m, 49.12m, 54.86m, and 60.63m spans in 5", 6-5/8", and 8-5/8" pipe sizes.

Genuine UMC Drive Components

UMC drive motors, gearboxes, couplers and collector rings — sharing the same supply chain with global TOP 3 centre pivot brands.

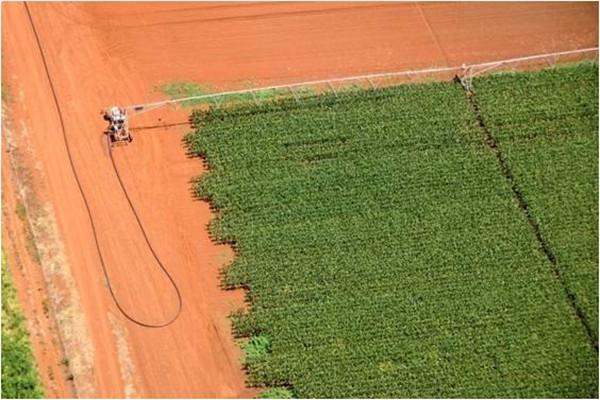

Irritech four wheel linear irrigation system

Komet & Senninger Sprinklers

Full range of Komet and Senninger sprinklers and end guns with Bermad valve control for precision water application.

Hot-Dip Galvanised Steel

Hot-dip galvanised steel construction providing long-term corrosion resistance in demanding farming environments.

Tech Details

Technical Characteristics

Specifications based on standard profile configuration. Low, high, and ultra high profiles available.

5", 6-5/8" and 8-5/8" pipe size options
Span lengths: 43.37m, 49.12m, 54.86m, 60.63m
Overhang lengths: 0.76m to 25.08m depending on configuration
Sprinkler spacing: 2.9m / 1.9m
Tyre options: 11.2-24, 11.2-38, 14.9-24, 16.9-24 (tube and tubeless available)
Pivot point height profiles: Low, Standard, High, and Ultra High
Honeywell micro switches with stainless steel sensor bearing and switch pivot arm
Dacromet treatment pedestal for 300% corrosion resistance improvement
304 stainless steel control panel body with remote control available
Cable guard system powered by solar panel with text/phone call alerts
Polylined pipe available in 6-5/8" and 8-5/8" with virgin high-density polyethylene internal tubing
QR code troubleshooting on towerbox and control panel covers

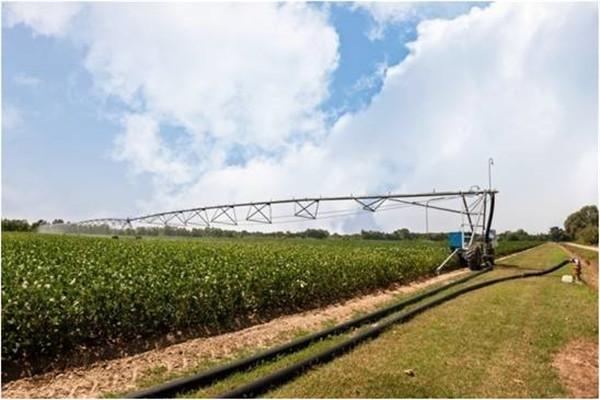

Irritech two wheel linear irrigator technical view

Our Product Range

Irritech Centre Pivot Irrigation Systems Range

Towable Centre Pivot

Towable pivot helps you limit the investment and gives you flexibility on irrigation scheduling. Especially ideal solution for some drought tolerant crop. The towable centre pivot can be moved from one field to another, allowing a single machine to serve multiple paddocks.

Flexibility: Move between fieldsIdeal for: Drought tolerant cropsBenefit: Limits investment cost

View Details

Two-Wheel Linear

Designed for small to medium sized rectangular fields, the Irritech Two-Wheel Linear provides back-and-forward irrigation with up to 8 spans or 487m. Available on both end feed and centre feed configurations with 5" and 6-5/8" pipe sizes. Compatible with 8120 and 8000 series. Water flow up to 1100GPM. Both ditch feed and hose drag water delivery available with hose drag up to 6".

Max spans: 8 (487m)Water flow: Up to 1100GPMPipe sizes: 5" / 6-5/8"

View Details

Four-Wheel Linear

Four wheel linear uses a one-cart platform completely customizable to your needs and operation. Based on your infrastructure, water can be delivered through a ditch or a hose. This linear has high-flow capabilities, giving you the right amount of irrigation no matter what you grow. Pipe diameter 5", 6-5/8", 8-5/8". Length up to 24 spans. Water supply via drag hose or ditch. Power supply via drag cable or diesel engine. Cart: Universal, rainger, swing around. Guide way: furrow guidance, above cable, GPS. Alignment: control bar, modified, floating.

Pipe diameter: 5" / 6-5/8" / 8-5/8"Max spans: 24Fertilizer tank: 1000L–3000L

View Details

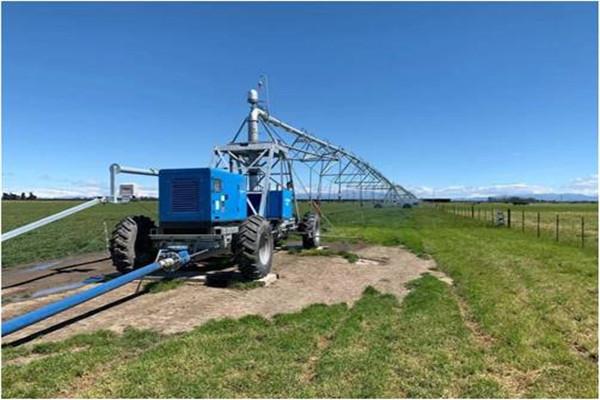

Pivoting Lateral Irrigator

The Pivoting Lateral Irrigator allows you to efficiently irrigate even more of your land with just one machine, saving time and money. This linear irrigation product rotates 180 degrees around the cart, making it possible to irrigate the opposite side of your field. The Swing-Around option can irrigate a large range of field widths and can use a hose drag or ditch feed as a water source, giving you the ability to use your existing infrastructure.

Rotation: 180 degreesCoverage: Both sides of fieldFeed: Hose drag or ditch

View Details

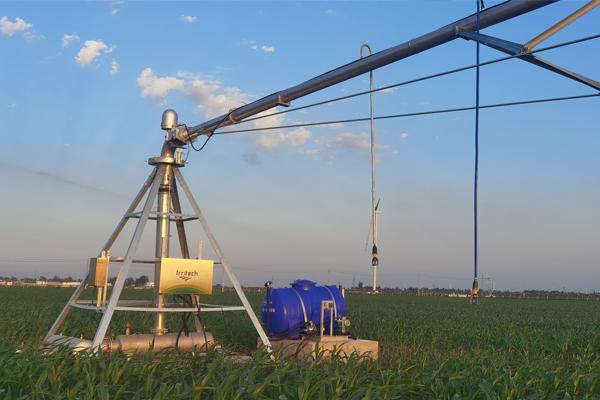

Fertiliser Injection System

Apply fertilizer and other crop protection products to your crops through Irritech centre pivot or linear systems. Fertilizer can be injected directly into a mixing tank and sprayed to crops with pivot water supply by sprinklers, enabling tight control of fertilizer application and costs. Applying fertilizer and crop protection products through centre pivot irrigation systems with the Irritech fertigation system is economical, agronomically sound, and environmentally friendly.

Pump rate: 0.04–1.9 gphTank capacity: 1000L–5000LHousing: Corrosion-resistant

View Details
